Liquid nitrogen continues to serve as an essential cryogenic agent in modern medicine. Operating at extreme temperatures reaching -320.8°F, it plays a vital role in dermatological procedures. Nevertheless, its value is heavily reliant on appropriate handling and storage techniques. Inadequate practices result in substantial evaporation loss, heightened safety risks, and inflated operating costs.

Physicians relying on cryogenic treatments require more than high-grade hardware. Practitioners need a solid grasp of proper containment routines. This guide explores vessel selection, inventory management, transfer methods, and crucial safety rules for liquid nitrogen handling.

Selecting the Optimal Storage Vessel

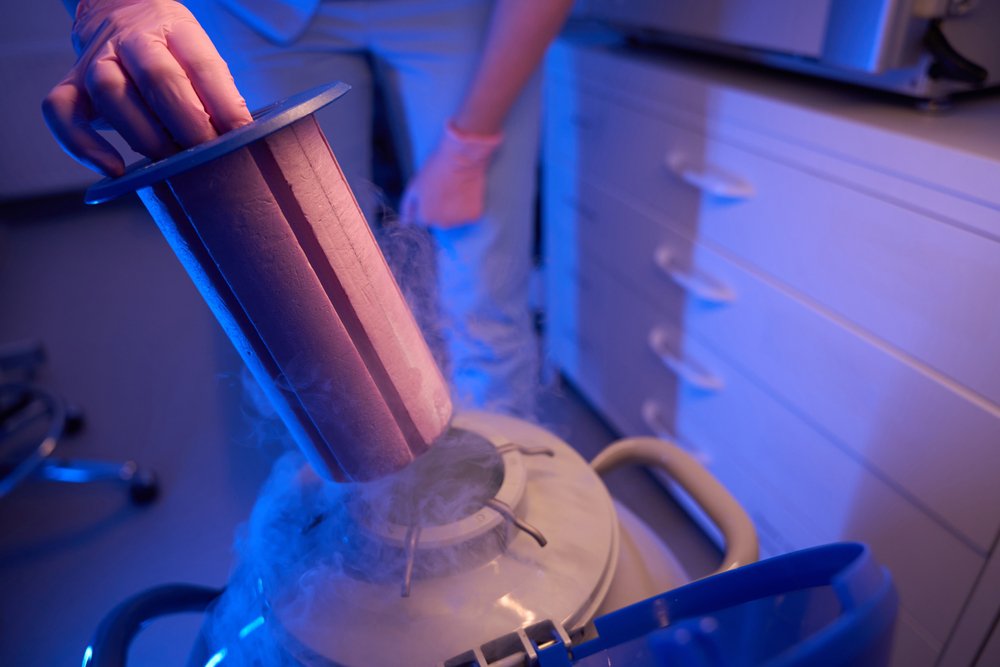

Proper conservation begins by choosing the right dewar. A vacuum-insulated container limits heat transfer and slows boil-off. Selecting an incorrect size or style leads to high operating expenses.

When selecting a dewar, consider the following factors:

• Capacity needs. Smaller models hold 10 liters or fewer with minimal daily loss, whereas larger units handle heavy clinic loads economically.
• Insulation quality. Multi-layer vacuum barriers sharply cut heat leakage and vapor loss.
• Neck plug integrity. A worn stopper accelerates loss, demanding immediate replacement.
• Storage environment. Ambient heat drives up boil-off. A 1.8°F room temperature increase boosts evaporation by 0.3 to 0.5%.

Matching the container to your practice volume prevents waste. Oversized units lose extra substance via passive evaporation. Brymill's N2 storage equipment offers a range of dewar sizes and accessories designed to fit different practice needs, all backed by a 3-year warranty.

Minimizing Evaporation During Conservation

Evaporation is inevitable despite premium containment. The primary objective is keeping losses low through disciplined routines. Technicians gauge performance via the Normal Evaporation Rate to monitor daily product reduction under static conditions.

• Reseal the flask immediately after every extraction.
• Place the unit in a cool, ventilated zone away from direct heat.
• Pre-chill empty vessels prior to filling to stop initial thermal spikes.
• Track refill schedules to prevent running dry, because an empty shell resists re-cooling.
• Limit fill volumes to 80% capacity to avoid excess pressure buildup.

Tracking boil-off rates exposes failing vacuum barriers early. A sudden jump in gas loss signals internal insulation breakdown.

Protocols for Transfer and Withdrawal

Moving cryogens safely from storage to point-of-use units demands absolute precision. Flawed transfer routines introduce spillage risks, pressure spikes, and material contamination.

• Attach a dedicated withdrawal mechanism instead of tilting heavy containers, which risks structural strain and spills.
• Crack transfer valves slowly to maintain steady, uniform flow.
• Employ a phase separator or funnel to stop splashing during refills.
• Route the cryogen through a filter during extraction to block debris from reaching clinical tools.
• Log all drawn quantities for inventory control and regulatory oversight.

Permanent withdrawal mechanisms simplify workflows in busy clinics. These fixtures let operators fill multiple tools simultaneously. Brymill's LN2 withdrawal equipment is built with exactly this in mind. The withdrawal device attaches directly to the dewar, features a faucet-style on/off control, and includes a built-in filter to clean the liquid before it reaches your Cry-Ac® unit.

Safety and Regulatory Protocols

Handling cryogenic liquids carries inherent hazards requiring strict protocols. Adequate precautions safeguard both clinical personnel and visiting patients.

• Ventilation. Storage rooms demand robust airflow. Escaping nitrogen gas displaces oxygen, triggering asphyxiation risks inside confined zones.
• Pressure management. The liquid expands roughly 694 times when vaporized. Unvented vessels create severe explosion hazards.
• Personal protective equipment. Staff handling cryogens must wear cryogenic gloves, eye protection, and closed shoes at all times.
• Container standards. Only certified, factory-approved vessels belong in clinical spaces. Uncertified units fail under extreme cold.
• Disposal. Never dump excess cryogen into standard sinks or waste pipes. Extreme cold fractures drain lines, leaking gas into rooms.

Adhering to Occupational Safety and Health Administration mandates is mandatory. Routine training, documented procedures, and proper signage foster secure environments.

Equip Your Practice With Confidence

Sound cryogenic management relies on consistent attention to detail. Choosing specialized dewars, curbing evaporation, utilizing robust extraction tools, and observing safety standards protect your team and budget.

At Brymill Cryogenic Systems, we have spent decades helping medical professionals get the most out of their liquid nitrogen. Our LN2 storage equipment and LN2 withdrawal equipment are engineered for durability, ease of use, and clinical efficiency. Contact us today to find the right configuration for your practice.

For decades, cryosurgery has relied on extreme cold as a blunt instrument to freeze and destroy diseased tissue. Today, the convergence of artificial intelligence supported diagnostics, individualized regimens, and hardware engineering is redefining the field through precision medicine.

As next-generation cryotechnology shifts from simple tissue ablation to hyper-targeted, patient-tailored interventions, surgeons can now eliminate localized malignancies while preserving the surrounding healthy structure with accuracy. This article explores the innovations driving this evolution and how the synthesis of cryotech and personalized healthcare is shaping the future of minimally invasive surgery.

Smart Diagnostics for Cryosurgical Planning

Artificial intelligence emerges as a valuable auxiliary tool in dermatological diagnosis. Deep learning software trained on dermoscopic images exhibits stellar capability in classifying cutaneous lesions. This proficiency minimizes interobserver discrepancies and accelerates clinical decision-making.

For specialists utilizing cryosurgery as a primary intervention for warts, keratoses, and other noncancerous growths, such precision counts. Correct identification dictates whether freezing qualifies as the optimal procedure.

Artificial intelligence powered dermoscopy specifically displays high potential for selecting proper courses in stubborn instances and predicting recovery trajectories. As diagnostic apparatuses grow widely available, practitioners secure clearer pre-treatment insights. This development fosters superior, targeted therapeutic choices.

Tailored Precision Medicine Treatment Protocols

Modern healthcare shifts decisively away from universal templates. Within cryosurgery, this evolution manifests as customized freeze metrics, tailored thaw durations, and regimens accounting for lesion categories alongside patient dermal traits. Benign growths typically demand a single freeze-thaw cycle between −4°F and −22°F, whereas malignant formations require two rounds at -40°F to -58°F. This clear distinction highlights why clinical exactness supersedes generic guidelines.

Precision medicine frameworks bolster this transition. Vital factors when tailoring a cryosurgical procedure include:

• Lesion classification. Differentiating whether an anomaly is benign, premalignant, or malignant dictates freeze depth and duration.
• Dermal profile and placement. Darker pigmentations or sensitive anatomical zones necessitate adjusted exposure intervals to mitigate hypopigmentation.
• Patient background. Past interventions, recurrence rates, and immune competence influence thermal aggression levels.
• Live tracking. Novel visualization tools like fluorescent markers enable surgeons to segregate pathological tissue from healthy cells intraoperatively.

Innovations in Cryosurgical Device Engineering

Apparatus evolution forms the mechanical foundation of modern cryosurgery. Current design initiatives concentrate on thermal regulation, probe miniaturization, and ergonomic weight distribution. Engineers refine high-performance physical prototypes to optimize cryogen flow dynamics. These structural advances pre-plan and refine cold delivery to target zones while shielding adjacent healthy tissue.

Precision flow control mechanisms integrate directly into cryoablation units to refine probe operation and calibrate cryogen release using physical valve actuation. These milestones minimize operator fatigue and boost procedural uniformity. Additional hardware priorities shaping next-generation tools comprise:

• Refined probe architecture: Slender, versatile wands capable of navigating intricate anatomical contours.
• Enhanced thermal insulation: Advanced chamber insulation maintaining precise internal temperatures while preventing exterior freeze-back.
• Rugged mobile builds: Lightweight, field-ready instruments ideal for outpatient environments.
• Materials durability: Utilizing high-grade, corrosion-resistant alloys to withstand extreme thermal cycles and ensure lasting mechanical integrity.

How Brymill Leads Tomorrow's Cryosurgical Standards

At Brymill Cryogenic Systems, precision has been a guiding principle since 1966. The Cry-Ac and Cry-Ac-3 portable liquid nitrogen devices both come in 500 ml and 300 ml capacities. They incorporate interchangeable spray tips featuring apertures spanning .016 to .04 inches, alongside a fingertip trigger granting ultimate operational command during delicate interventions.

As precision medicine progresses toward tailored, technology-driven care, hardware reliability remains paramount. Flawless diagnostics and sophisticated protocols yield optimal results solely when handheld instruments perform dependably. Brymill hardware fulfills those rigorous benchmarks.

Ready to Elevate Your Cryosurgical Practice?

Superior clinical outcomes stem from dependable instruments paired with ongoing education. If your facility seeks alignment with modern precision medicine standards, support is readily available.

Reach out to us today to learn more about our cryogenic systems and accessories, clinical resources, and how we support practitioners at every level.

Bringing cryosurgery out of specialized medical centers and into the field requires robust, adaptable cryogenic equipment designed for high mobility. Whether treating wildlife in remote terrain, offering rural veterinary care, or providing fast-response human dermatology and oncology treatments, clinicians must rely on portable units that deliver reliable freezing performance without static clinical infrastructure.

Executing effective field-based cryodestruction depends heavily on selecting hardware that balances thermal efficiency, ease of transport, and structural durability. Factors such as liquid nitrogen loss rates during transit, ruggedized casing, pressure regulation, and field-refilling logistics directly influence clinical outcomes and operational uptime.

This article explores key technical considerations and practical equipment criteria necessary to maintain precise, targeted tissue necrosis when practicing mobile cryosurgery in unpredictable environments.

Navigating the Logistical Hurdles of Cryogen Transport

Liquid nitrogen remains the most widely utilized cryogen in clinical practice, featuring a boiling point of -320.8°F (-196°C). Its efficacy is well established. However, transporting the substance introduces serious logistical hurdles. Liquid nitrogen is stored in insulated vessels called dewars, holding anywhere from 4 to 50 liters. These containers must remain upright at all times, cannot tilt, and often necessitate specialty transport vehicles.

The physical parameters of cryogen transport create difficulties during field execution:

• Dewars must stay upright and stationary during transit to prevent spills or pressure accumulation.
• Storage units demand proper ventilation because nitrogen gas displaces oxygen inside enclosed spaces.
• Liquid nitrogen features a limited hold time, rendering long-distance transit time-sensitive.
• Institutional rules sometimes restrict transport exclusively to specialized vehicles featuring separate cargo cabs.

These factors dictate that practitioners plan field trips meticulously. Spontaneous visits to remote locations remain difficult to execute using large-format storage tanks.

Maximizing Efficiency with Compact Cryosurgical Devices

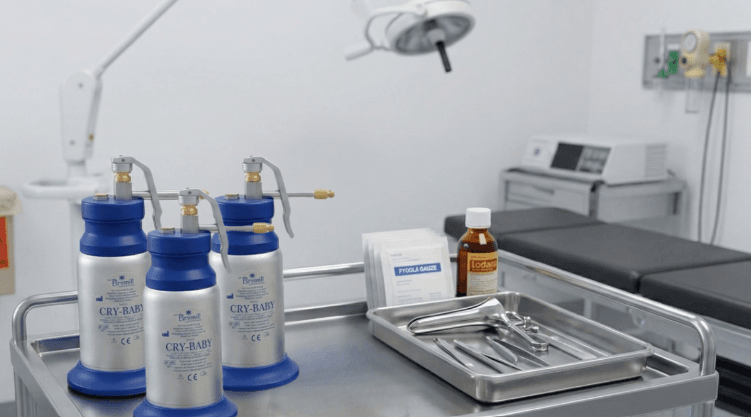

Despite the challenges, well-designed compact cryosurgical devices make field-based interventions far more achievable. Handheld units balancing portability with clinical efficacy gain favor across ambulatory venues. Their lighter weight and smaller footprint allow a single provider to transport and operate them independently.

Innovations in portable hardware focus on several key attributes. Superior insulation helps maintain consistent internal operating conditions, and ergonomic builds reduce operator fatigue during extended workflows. Fingertip triggers and interchangeable spray tips allow precise application even outdoors.

Small handheld units also reduce capital outlays required for outreach work. A durable apparatus avoids infrastructure overhead typical of a full clinic setup. This makes field care viable for organizations serving multiple locations.

Expanding Patient Access Through Medical Outreach

Community health outreach programs benefit greatly from portable treatment solutions. Skin conditions such as warts, seborrheic keratoses, and actinic keratoses occur frequently. Many patients in underserved regions lack consistent access to dermatologists. A practitioner carrying advanced cryogenic equipment offers timely therapy during a mobile health visit.

Nurse practitioners and physician assistants frequently lead these outreach efforts. An easy-to-carry unit lets these providers deliver standard care matching fixed clinics. Field-ready systems support shorter procedure times and reduce patient referrals.

Addressing Animal Health Needs in Veterinary Practice

Cryosurgery holds a prominent role in veterinary medicine. Practitioners treat animal conditions including skin tumors, papillomas, and perianal growths. In large-animal practices, bringing cryogenic equipment directly to the patient prevents stressful animal transport, offering massive practical advantages.

Units utilized in veterinary settings must accommodate varying tissue depths and lesion sizes across diverse species. Interchangeable probes prove essential for this adaptability.

Hardware handling both spray and contact freezing methods grants veterinarians the required flexibility. Durability remains equally vital because field gear encounters heavy wear and environmental variability.

Trusting Industry-Standard Solutions from Brymill

For professionals seeking cryogenic equipment that performs in both clinical and field-based environments, Brymill Cryogenic Systems has been a trusted name since 1966. The Cry-Ac® and Cry-Ac®-3 handheld liquid nitrogen devices are available in 300 ml and 500 ml capacities. Stainless steel and brass construction ensures longevity, while a patented safety auto-vent design permits safer handling during transit.

Whether serving patients inside a rural clinic, mobile van, or veterinary farm call, the right cryogenic equipment elevates outcomes. Contact us today to find the solution that fits your practice and your patients.

At its core, cryogenic freezing initiates a cascade of biological events that systematically dismantle cells from the inside out. Recognizing this sequence dictates how operators position cryoprobes, establish freeze durations, and safeguard adjacent healthy tissue.

This guide examines the microscopic mechanics driving cryogenic freezing and converts those principles into actionable techniques for daily dermatological practice.

Extracellular Versus Intracellular Ice Formation

When tissue temperature drops below 32°F (0°C), ice formation begins. This transition occurs neither simultaneously nor uniformly across the affected field. Initially, ice crystals nucleate within the extracellular space, drawing water outward from adjacent cells via osmotic pressure. This extracellular crystallization dehydrates the cell and concentrates intracellular electrolytes, placing severe mechanical stress on the plasma membrane before any internal freezing occurs.

As temperatures drop, typically reaching between 23°F and 5°F, intracellular ice crystals materialize. At this juncture, structural damage becomes physical and permanent. Growing ice formations puncture cellular membranes with disruptive force, ensuring that once integrity is compromised, the cell cannot survive the thaw phase. While ice crystal formation begins in this range, reliable, guaranteed lethal cell destruction across most cutaneous tissues (like keratinocytes) typically requires reaching critical end temperatures of -4°F to -58°F.

Vascular Damage: The Secondary Wave

Cellular rupture represents only the initial phase of tissue injury. Cryogenic freezing also provokes a profound vascular response that extends tissue necrosis well beyond the immediate thaw. This sequence unfolds through distinct physiological stages:

• During freezing: Extreme cold induces immediate vasoconstriction, sharply curtailing local blood supply to the target site.
• During thawing: Vessels reactive-hyperemically dilate, provoking vascular congestion, interstitial edema, and platelet aggregation.
• After thawing: Microthrombi develop, halting microcirculation and triggering ischemic cell death around the periphery of the lesion.
• Ongoing: Subsequent reperfusion injury, free radical generation, and membrane breakdown compound tissue destruction hours post-procedure.

This vascular cascade matters clinically because full tissue loss remains invisible immediately after treatment, continuing to evolve over subsequent hours. Practitioners must counsel patients accordingly, refraining from judging final outcomes based solely on immediate post-treatment erythema or edema.

Cooling Velocity: The Ultimate Variable in Cryosurgery

Cooling velocity stands as one of the most consequential variables in cryosurgery. Rapid freezing drives tissue temperatures downward before cellular adaptation can occur, favoring lethal intracellular ice formation over gradual osmotic dehydration.

Slower freezing permits extracellular ice to dominate, extracting moisture outward while sparing immediate internal rupture. Consequently, slower freezing relies more heavily on subsequent vascular failure to complete the destruction, often resulting in unpredictable core necrosis where reliable intracellular damage is required.

Rapid temperature crashes maximize direct cellular trauma alongside downstream vascular collapse. Liquid nitrogen, capable of reaching -320.8°F, remains uniquely suited to deliver this decisive thermal impact.

Clinical Application: Translating Cellular Science to Practice

Cellular biology directly dictates optimal treatment table execution. Several core principles follow from these established physiological mechanisms:

• Freeze rapidly, thaw slowly. Fast freezing maximizes intracellular ice formation, whereas slow thawing prolongs vascular disruption and amplifies total cell death within the treatment zone.
• Respect the freeze margin. Visible ice borders mark the primary freezing front, but ischemic damage extends outward. Account for this extended perimeter during lesion sizing.
• Repeat freeze-thaw cycles. A secondary freeze proves significantly more destructive than the initial pass because cells weakened by primary ice crystal formation exhibit heightened vulnerability.
• Match probe or spray aperture to lesion size. Precision prevents unnecessary lateral thermal spread, sparing healthy surrounding tissue while ensuring thorough treatment margins.

These operational tenets are rooted entirely in the verifiable cellular realities occurring whenever liquid nitrogen meets skin.

Brymill Devices Built for the Science

Comprehending cellular destruction elevates clinical results only when hardware delivers dependable performance. Successful outcomes demand consistent, rapid temperature drops paired with pinpoint delivery accuracy.

At Brymill Cryogenic Systems, equipment engineering directly addresses these demanding clinical specifications. The Cry-Ac and Cry-Ac-3 handheld units supply steady liquid nitrogen output through precision-matched applicators designed specifically for dermatology and primary care environments. Whether treating common verrucas or seborrheic keratoses, complete control over freeze depth, spray dispersion, and cycle timing is integrated into every unit.

Contact us to learn more about our full line of cryosurgical devices and accessories. Our team is here to help you find the right tool for your clinical needs.

Dermatologic surgery has evolved significantly over the past several decades. Among its most refined procedures, Mohs micrographic surgery (MMS) stands as the gold standard for the treatment of many cutaneous malignancies, offering exceptional cure rates while preserving as much healthy tissue as possible. It uniquely positions the surgeon as both the operating physician and the pathologist, ensuring complete histological margin clearance in a single outpatient session.

What makes MMS particularly advanced is its reliance on precise cryosurgical technique. Every stage of the procedure depends on controlled freezing and careful histological processing. This article discusses the specialized cryosurgical applications within MMS, including dermatologic indications, tissue processing protocols, staining methods, and immunohistochemical strategies that elevate the accuracy of this procedure.

Mohs Micrographic Surgery: Specialized Dermatologic Applications

MMS is not limited to basal cell carcinoma (BCC) and squamous cell carcinoma (SCC). Its applications have expanded significantly. It is now used to treat dermatofibrosarcoma protuberans, microcystic adnexal carcinoma, and sebaceous carcinoma. More recently, with the availability of reliable immunohistochemical stains, MMS has demonstrated strong utility in treating melanoma in situ, lentigo maligna, and thin invasive melanomas.

The Mohs Appropriate Use Criteria (AUC) helps guide clinicians in determining whether MMS is suitable for a given malignancy. The criteria consider factors such as lesion size, anatomical location, immune status, histological features, and whether the lesion is primary or recurrent. A score between 7 and 9 generally indicates MMS is appropriate. This system ensures that patients receive the right level of surgical intervention based on clinical need.

Cryosurgical Tissue Processing Techniques

The cryosurgical preparation of tissue is central to the success of MMS. After excision, the surgeon manipulates the specimen so that both peripheral and deep margins lie in the same plane. The specimen is then mounted on a cryostat chuck, frozen, and sectioned horizontally with a microtome blade. This is a method that allows 100% of the surgical margins to be examined in a single section.

Freezing temperature plays a critical role. Standard tissue is frozen at approximately −7.6°F. Adipose-rich specimens require colder temperatures, typically between −18.4°F and −25.6°F, to prevent tearing during sectioning. Cartilage, by contrast, is optimally sectioned at slightly warmer temperatures, between 3.2°F and −7.6°F, due to its inelastic nature. Tissue containing fat may also benefit from the use of a Peltier plate set to −58°F or a cryogen spray like liquid nitrogen.

Key steps during cryosurgical processing include:

• Specimen orientation: Small incisions mark the 12-o'clock position before excision to maintain directional accuracy throughout processing
• Bevel angle control: The scalpel is angled at approximately 45 degrees during excision to help the peripheral margin lie flat; angles below 30 degrees risk cutting into the tumor
• Relaxing incisions: Superficial vertical or beveled incisions help the tissue lie flat before embedding, without disrupting marginal surfaces
• Cryogen application: A liquid nitrogen spray can be used to secure the tissue onto the slide. This is especially useful for specimens that resist lying flat

Histology Preparation and Staining Protocols in Mohs Micrographic Surgery

Once frozen sections are cut to the appropriate thickness, typically 5 to 6 µm, staining begins. Hematoxylin and eosin (H&E) is the most widely used stain in MMS. Hematoxylin marks acidic cellular structures, such as nucleic acids, in a bluish-purple hue. Eosin provides a pink counterstain for cytoplasm and collagen.

Toluidine blue serves as an effective alternative, particularly for BCC. It stains tumor islands blue and the surrounding mucinous stroma a reddish-purple, making it easier to distinguish malignant tissue from adnexal structures. While faster and simpler than H&E, toluidine blue offers less nuclear detail and is therefore used in selective cases. Consistent, well-executed staining protocols are essential, as processing errors can lead to misinterpretation of margins and unnecessary tissue removal.

Immunohistochemistry in Frozen Section Analysis

Immunohistochemical (IHC) staining has become increasingly important in MMS, particularly for melanocytic tumors. MART-1 (melanoma antigen recognized by T cells 1) is the most commonly used immunostain for detecting melanoma in situ and minimally invasive melanoma on the face, ears, hands, and feet. It offers high sensitivity and specificity on frozen sections and is regarded as the most effective single stain for most melanoma variants.

A 20-minute rapid MART-1 protocol exists for efficient intraoperative use, involving cutting at 4 µm, acetone fixation, protein blocking, antibody application, and hematoxylin counterstaining. Additional melanocyte immunostains such as SOX10, Mel-5, HMB-45, PRAME, and S100 provide supplementary options for complex or unusual cases. Cytokeratin staining (e.g., AE1/AE3) is also available for SCC and BCC margin confirmation, though its added time and cost make H&E more practical for routine use.

Precision Tools for Precise Procedures: How Brymill Supports MMS Practice

MMS demands exact temperature control, reliable cryogen delivery, and consistent performance at every step. The cryogen spray used during tissue processing must deliver accurate, controlled output. Any inconsistency introduces risk.

Brymill Cryogenic Systems has been designing and manufacturing hand-held liquid nitrogen cryosurgical equipment since 1966. Our flagship Cry-Ac® and Cry-Ac®-3 devices are trusted by dermatologists for their precision, durability, and ease of use in clinical and laboratory settings.

For practices seeking equipment that meets the demands of advanced dermatologic procedures, contact us to learn more about how Brymill's solutions can support your MMS protocols.

​Maintaining rigorous infection control standards is one of the most important responsibilities a clinician carries during any clinical procedure. In cryo treatment, hygiene protocols are essential. A lapse in cleanliness can put patients at risk for infection and expose the practice to liability.

Research has shown that microorganisms, including viruses, can survive in liquid nitrogen, meaning inadequate sanitation during a session can facilitate pathogen transmission from one patient to another. In this article, we explore key hygiene considerations every cryosurgical practitioner should understand, including how to clean reusable components, how to prevent cross-contamination, and how the use of detachable tips and probes supports a safer clinical environment.

Cleaning Reusable Components in Cryo Treatment

Reusable cryosurgical components require consistent, thorough cleaning between every patient use. The CDC recommends meticulously cleaning patient-care items with water and an enzymatic or detergent-based cleaner before any high-level disinfection or sterilization procedure. Visible organic residue, such as tissue debris or biological fluid, must be removed before disinfection. Skipping this step reduces the effectiveness of any sterilization that follows.

For probe-based components, automated washing systems are the preferred method. A standard sequence includes a pre-rinse, a detergent wash with hot water, a thermal rinse using purified water at 176–199.4°F (80-93°C), and a hot air dry cycle.

Manual cleaning is not recommended when an automated system is available. Abrasive materials should never be used on probe stems, as they can damage precision surfaces. After cleaning, instruments must be thoroughly dried before packaging or sterilization to prevent microbial growth in trapped moisture.

Preventing Cross-Contamination

Cross-contamination is a significant concern in any setting where liquid nitrogen is used repeatedly across multiple patients. One of the most common mistakes is dipping applicators or swabs directly into a shared liquid nitrogen container. Each dip introduces the potential for microbial transfer. If unused nitrogen is returned to the main storage tank, the contamination can spread to the entire supply.

Best practices to reduce this risk include:

• Never returning unused liquid nitrogen to the main storage dewar
• Keeping the liquid nitrogen container capped and covered when not in active use
• Disinfecting all reusable accessories between patients, including any item that made contact with the patient's skin or the spray field

The CDC classifies many cryosurgical accessories as noncritical or semicritical medical devices, depending on the level of tissue contact involved. Noncritical items require, at a minimum, low-to intermediate-level disinfection. Semicritical items, or those contacting mucous membranes or non-intact skin, require high-level disinfection. Understanding this classification helps clinicians apply the right level of decontamination for each component.

The Role of Detachable Tips and Probes in Cryo Treatment

One of the most practical tools in maintaining hygiene during cryosurgery is the use of detachable tips and interchangeable probes. These components allow the device's delivery system to be changed between patients without replacing the entire unit. This design reduces the surface area that needs full sterilization per session and makes targeted disinfection far more practical.

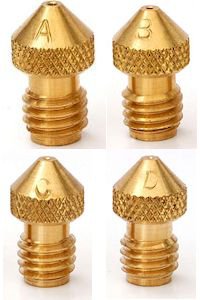

Detachable spray tips vary in aperture size, allowing clinicians to control the width and precision of the liquid nitrogen spray for different lesion types. Detachable probes, including mini, flat, conical, and concave designs, serve different treatment scenarios and can each be individually reprocessed. Because these components are separated from the main device, they can be properly cleaned and sterilized in accordance with validated protocols without risking damage to the handheld unit itself.

Some cryosurgical probes are not fully immersible. For those units, the CDC advises that the tip of the probe be immersed in high-level disinfectant for the appropriate contact time. Any portion of the probe that may have contacted a mucous membrane should also be treated, either through immersion or by wrapping with a disinfectant-soaked cloth. The probe is then rinsed with water and dried before the next use.

Facility Protocols and Staff Training

While individual technique is important, consistent facility-wide protocols make infection control reliable. Each clinical setting should have written policies that govern how cryosurgical instruments are cleaned, handled, transported to processing, and stored after sterilization. Used instruments must be transported to central processing in closed or covered containers to prevent unnecessary exposure during transit.

Staff training is equally important. Every member of the care team who handles cryosurgical equipment should understand:

• The classification of each device component (critical, semicritical, or noncritical)
• The required level of disinfection or sterilization for each item
• How to verify that sterilization packaging is intact before use
• Proper storage conditions, including clean, dry environments at room temperature

Periodic audits of cleaning practices help identify gaps before they become patient safety concerns. Clear documentation of reprocessing cycles also supports regulatory compliance and provides a record in the event of an adverse outcome.

Equipping Your Practice With Brymill

Infection control starts with equipment designed to support safe, hygienic practice. Brymill Cryogenic Systems has been building precision cryosurgical tools since 1966, and our product line is engineered with clinical workflow in mind.

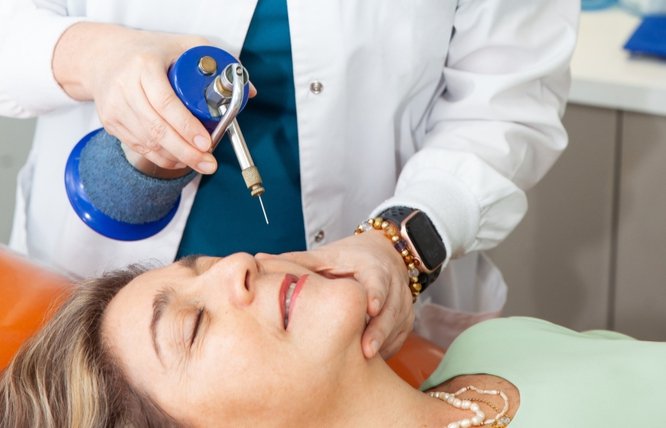

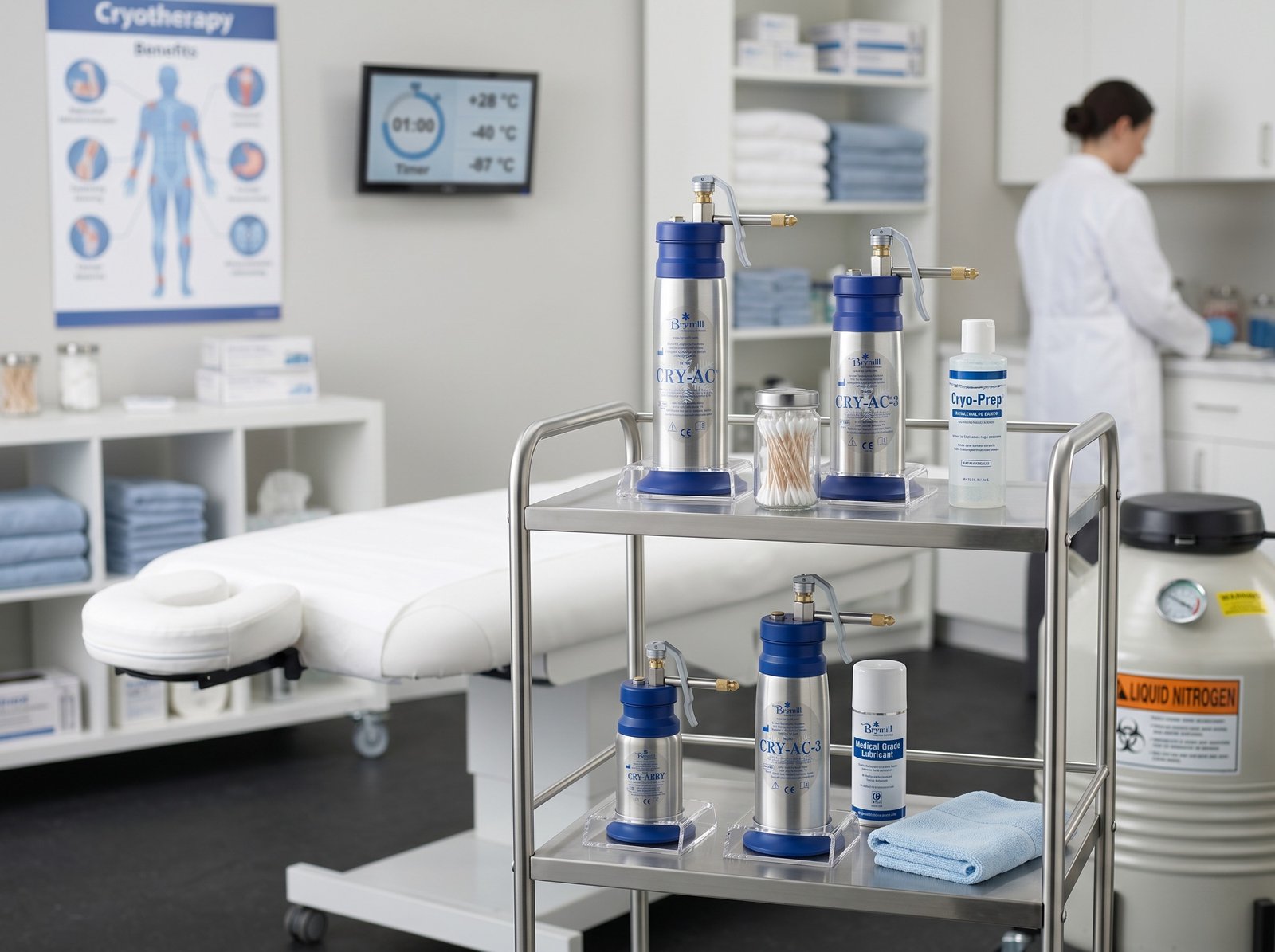

The Cry-Ac® and Cry-Ac®-3 handheld liquid nitrogen dispensers are compatible with Brymill's extensive range of interchangeable spray tips and closed probes. This modular design supports proper reprocessing by allowing components to be detached, cleaned, and sterilized individually.

If you are evaluating your practice's cryosurgical setup or looking to upgrade to equipment that supports modern infection control protocols, we encourage you to let’s chat. Our team is ready to help you find the right tools for safe, effective, and hygienically sound cryosurgery.

In dermatological and surgical practice, selecting the optimal lesion removal technique is rarely a one-size-fits-all decision. Clinicians must constantly weigh procedural efficiency, patient comfort, cosmetic outcomes, and histological requirements against specific lesion characteristics—such as depth, tissue architecture, malignancy risk, and anatomical location.

This article examines the core clinical tradeoffs between cryosurgery and competing lesion removal modalities. By evaluating key factors such as cure rates, tissue preservation, scar formation, pain management, and the crucial necessity of histopathological verification, we aim to provide a practical framework to guide targeted treatment selection in daily clinical practice.

Comparing Core Methods in Lesion Removal

While cryosurgery, electrosurgery, and surgical excision are all standard approaches for removing skin lesions, each operates through a different biological mechanism:

• Cryosurgery: freezes and destroys compromised tissue using  liquid nitrogen, allowing necrotic cells to slough off naturally over the following days or weeks.
• Electrosurgery: Employs electric current to excise or fulgurate lesions, providing simultaneous intraoperative hemostasis for smaller lesions.
• Surgical Excision: Surgically removes the lesion with a scalpel and primary closure via sutures, serving as the preferred modality when histopathological analysis is required.

Because each technique relies on a unique mechanism of action, clinical selection must be tailored to the specific characteristics of the lesion and the individual patient. Cryosurgery is distinct in that it avoids incisions, injectable local anesthetics, and suture removal entirely. Electrosurgery offers speed and versatility, though it introduces operational safety factors such as electrical risks. Surgical excision provides a definitive approach, but it entails greater preparation and comprehensive postoperative management.

Healing Time and Cosmetic Outcomes

Recovery and aesthetic results vary meaningfully across these three methods. Understanding this helps set realistic patient expectations.

For surgical excision, healing typically takes one to two weeks, with sutures removed within 14 days. Scarring is usually minimal with careful technique, but it is a consistent possibility, particularly with deeper excisions.

For electrosurgery, wound healing is comparable to excision in timeline. However, it tends to carry a higher risk of post-inflammatory hyperpigmentation, especially in patients with darker skin tones.

Cryosurgery's healing course is different. The treated area scabs and sheds naturally, usually within two to four weeks. In terms of cosmetic outcomes:

• Cryosurgery is associated with less post-inflammatory hyperpigmentation compared to electrodesiccation.
• Hypopigmentation is the most common side effect of cryosurgery, due to melanocytes' high sensitivity to cold injury.
• Pigmentary changes are usually temporary, resolving within two to four months in most patients.
• No sutures are needed, so patients avoid follow-up visits for stitch removal.

For patients with lighter skin, cryosurgery often yields excellent cosmetic results with very little visible scarring.

When Cryosurgery Is the Superior Option

Cryosurgery is not always the default choice, but in many clinical scenarios, it clearly outperforms the alternatives. The AAFP identifies it as the treatment of choice for actinic keratoses, and it achieves high cure rates for a broad range of benign and premalignant conditions.

Cryosurgery tends to be the preferred approach when:

• The patient cannot tolerate anesthesia or is pregnant
• Multiple lesions need to be treated in a single session
• The lesion is benign and histological confirmation is not required
• The clinical setting is an outpatient office without surgical facilities
• The patient is elderly, pediatric, or medically complex

It is also worth noting that cryosurgery may offer an immunological advantage over excision when treating certain malignant lesions. Frozen malignant cells retain antigens, which can trigger a host immune response that may help target remaining cancer cells systemically. This is a clinically meaningful distinction that excision does not provide.

Cryosurgery is not ideal when histology is required, when the lesion has indefinite margins, or when the patient has conditions that increase cold sensitivity, such as cryoglobulinemia or Raynaud disease.

Precision and Tissue Preservation in Lesion Removal

One of cryosurgery's most clinically relevant advantages is its ability to preserve healthy surrounding tissue. The dermatologist or physician can control freeze depth and duration, limiting tissue damage to the targeted area. This precision is harder to replicate with electrosurgery, which generates heat that can affect surrounding tissue.

With surgical excision, the margin of healthy tissue removed alongside the lesion is intentional, but it is still tissue lost. Cryosurgery minimizes that collateral effect. It also carries a low infection risk due to the absence of open wounds. Wound care requirements are minimal, which reduces the burden on both the patient and the clinical team.

Selecting the Optimal Instrument for Clinical Practice

Since 1966, Brymill Cryogenic Systems has provided medical professionals with proven, dependable instruments for clinical cryosurgery.Our Cry-Ac® and Cry-Ac®-3 devices are designed to deliver precise, controlled liquid nitrogen application for a wide range of skin lesion removal procedures. Designed specifically for outpatient settings, these easy-to-use instruments are trusted by dermatologists, family physicians, nurse practitioners, and physician assistants nationwide.

Cryosurgery has long been associated with dermatology clinics and specialty practices. Yet cryogenic solutions are increasingly finding a home in broader healthcare settings, from family medicine offices to podiatric clinics. This shift reflects a growing recognition that the procedure's simplicity, safety, and cost-effectiveness make it a natural fit beyond its traditional specialty roots.

 When primary care providers and podiatrists can treat common lesions in-office, it reduces referral burdens, shortens patient wait times, and improves access to care.

In this article, we explore the growing adoption of cryosurgery in non-specialist settings, the training requirements involved, and the most common procedures performed outside of dermatology.

Cryogenic Solutions: A Growing Presence in Non-Specialist Settings

The adoption of cryosurgery in primary care is not new, but it has accelerated in recent years. Family physicians, nurse practitioners, and physician assistants have recognized the value of treating skin lesions without a dermatology referral. Cryosurgery is well-suited for busy outpatient environments because it requires minimal setup and produces quick results with a low risk of complications.

In podiatry, the same trend is evident. Liquid nitrogen cryosurgery has become a preferred method for treating plantar warts and other foot lesions because it is safe, effective, and leaves little to no scarring. Clinical studies show that up to 92.5% of plantar warts clear using cryosurgery, with many responding to a single session. These outcomes make a compelling case for wider adoption in podiatric practice.

​The integration of these tools into primary care not only enhances clinical outcomes but also significantly boosts patient satisfaction. Patients appreciate the convenience of receiving comprehensive care in a single, familiar location, avoiding the logistical challenges often associated with external specialist referrals.

What Training Is Required

One reason cryosurgery appeals to non-specialist clinicians is that the learning curve is manageable. Training typically involves:

• Hands-on learning with supervised procedures before independent practice.
• A working knowledge of which lesions are suitable for treatment.
• Understanding of freeze-thaw cycle timing for different lesion types and depths.
• Familiarity with contraindications and potential adverse effects.
• Proper equipment handling, including safe storage and transfer of liquid nitrogen.

Techniques in cryosurgery are best learned by observing experienced practitioners treat patients directly. Structured workshops, product training materials, and procedural videos supplement hands-on education. All clinicians should demonstrate competency and maintain standards through regular practice and evaluation.

Common Procedures Outside Dermatology

Primary care providers regularly use cryosurgery to address a wide range of benign and premalignant lesions. The most frequently treated conditions include:

• Actinic keratoses and seborrheic keratoses
• Viral warts and molluscum contagiosum
• Skin tags, dermatofibromas, and benign nevi
• Solar lentigines and keloids

​Cryosurgery is also used in podiatric practice to address granulation tissue and other localized lesions on the foot.

Precision and Patient Safety in Broader Practice

Expanding cryosurgery into non-specialist settings does not mean compromising on safety or precision. Proper technique remains essential. Clinicians must determine accurate freeze margins, select appropriate application methods, and tailor freeze-thaw cycles based on the individual lesion.

Patient selection is equally important. Providers should assess each patient's full clinical picture before proceeding. Certain populations, such as those with poor circulation in the lower extremities, require extra caution in podiatric applications. Detailed documentation and consistent follow-up allow clinicians to monitor outcomes and catch any recurrence early.

Brymill Devices Built for Every Practice

For primary care providers and podiatrists looking to integrate cryosurgery into their practice, having the right equipment matters. Brymill Cryogenic Systems has been the industry standard for handheld liquid nitrogen cryosurgical devices since 1966. The Cry-Ac® and Cry-Ac®-3 were designed for precision, portability, and consistent performance across a wide range of clinical settings.

Whether you are a family physician treating actinic keratoses or a podiatrist addressing plantar warts, Brymill's devices deliver the reliability your patients expect. Our devices are built for the everyday demands of non-specialist and specialist practices alike.

Ready to bring professional cryosurgical capability to your clinic? Contact us today to learn more about Brymill's lineup of cryogenic solutions and find the right fit for your practice.

Pre-cancerous skin conditions rarely announce themselves with urgency. Yet the window between early detection and malignant transformation is where clinical outcomes are truly shaped. Actinic keratosis removal through cryosurgery offers a proven, practical path forward. Understanding how and when to use this approach can make a meaningful difference for patients at risk.

The Clinical Effectiveness of Cryosurgery for Actinic Keratosis Removal

Actinic keratoses (AKs) are rough, scaly lesions driven by chronic UV exposure. They are considered pre-malignant and warrant timely clinical attention. Cryosurgery using liquid nitrogen is widely recognized as a first-line treatment for AK removal.

Cure rates for this approach are well-documented by clinicians. Studies report eradication rates ranging from 86% to 99% for actinic keratoses treated with cryosurgery. Freeze time plays a direct role in those outcomes:

• A freeze time under five seconds yields roughly a 39% cure rate
• Freeze time exceeding five seconds improves that figure to approximately 69%
• A freeze time of more than 20 seconds can push cure rates to around 83%

Cryosurgery is also fast, cost-effective, and does not require local anesthesia. These qualities make it especially practical in outpatient or office-based settings. Patients generally tolerate the procedure well, with minimal recovery time after treatment.

Understanding the Risk of Malignant Progression

Actinic keratoses are not merely cosmetic concerns. They are in situ carcinomas with the potential to progress to squamous cell carcinoma if left unmanaged. Early, decisive intervention is what disrupts that trajectory.

Treating visible lesions promptly also reduces the likelihood of subclinical lesions advancing over time. For patients with a significant UV damage history, this kind of proactive management is especially warranted. The stakes extend beyond the individual lesion.

Some cryosurgery patients present with "field cancerization." This term describes widespread UV-damaged skin containing both visible and subclinical disease. In those cases, practitioners can sequentially combine lesion-directed cryosurgery with field-directed topical agents. One meta-analysis found that pairing cryosurgery with a topical intervention raised complete clearance rates from 46% to 79%. Addressing lesions early reduces the chance of malignant transformation and protects patients from more aggressive future interventions.

Treatment Planning Considerations for Cryosurgery

Effective treatment starts with a clear clinical plan. Several factors guide the decision-making process:

• Lesion characteristics: Thickness, size, and location all affect freeze time and margin requirements. Practitioners typically freeze actinic keratosis for 10 to 15 seconds with a 2-mm margin.
• Number of lesions: Isolated AKs are ideal candidates for lesion-directed cryosurgery. Patients with multiple lesions or field cancerization may benefit from a combined approach.
• Patient history: Individuals with immunosuppression, a history of significant UV exposure, or prior AKs require careful and attentive follow-up.
• Clinical setting: Cryosurgery is well-suited for outpatient, general practice, or dermatology clinic environments.

Clinicians should set realistic expectations with patients regarding post-treatment effects. Temporary redness, blistering, or pigment changes can occur. Serious adverse responses are uncommon. Transparent pre-procedure communication supports compliance and follow-through.

It is also worth noting the contraindications. Cryosurgery is not appropriate when histopathological diagnosis is required or when lesion margins are poorly defined. In those situations, biopsy or specialist referral should be prioritized.

Monitoring and Follow-Up After Treatment

Clearing a lesion is not the final step. Patients with a history of actinic keratoses remain at risk for new lesions developing elsewhere. Scheduled follow-up visits are an essential part of comprehensive skin cancer prevention.

At each follow-up, clinicians can assess the treated site, identify new lesions, and determine whether further intervention is needed. Persistent or recurrent AKs may call for re-evaluation of the treatment approach. Consistent monitoring closes the loop on early intervention efforts.

Patient education adds another layer of protection. Guidance on sun protection habits, including daily sunscreen use and protective clothing, supports long-term lesion prevention. A well-informed patient is far more likely to stay engaged in their own skin health and return for timely assessments.

Precision Starts With the Right Device

Outcomes in actinic keratosis removal depend on clinical skill and dependable equipment. Controlled, accurate liquid nitrogen delivery is what separates effective treatment from avoidable complications. Both under-freezing and over-freezing carry risks. The right device makes consistent technique far more achievable.

Brymill Cryogenic Systems has set the industry standard for handheld liquid nitrogen cryosurgical devices since 1966. Our Cry-Ac® was the first handheld cryosurgical unit ever created. It delivers precise, controlled spray for focused lesion destruction.

For practices managing higher volumes of AK cases, the Cry-Ac®-3 offers extended capacity without sacrificing accuracy. Both devices are engineered for reliable, repeatable performance across everyday clinical use.

If you want to elevate the precision of your cryosurgical practice, contact Brymill today.

Choosing the right technique can significantly shape outcomes in cryosurgery. Cryogenic solutions for dermatology and primary care often come down to two core delivery approaches: open spray and closed probe. Each method carries distinct strengths based on lesion type, anatomical location, and depth of tissue destruction needed. Knowing when to use each technique helps clinicians deliver safer, more effective treatment across a broad range of skin conditions.

How Cryogenic Solutions Works

The open spray technique delivers liquid nitrogen directly onto a lesion through a specialized nozzle or tip. It creates rapid, broad cooling across the treatment area. This method suits flat, superficial lesions found on varied body surfaces.

The closed probe technique uses a metal tip cooled internally by liquid nitrogen. The probe is pressed directly onto the lesion surface. Firm pressure during contact can speed the freezing process and improve heat transfer.

Both approaches rely on liquid nitrogen, which boils at -195.6°C (-320.1°F). Tissue destruction occurs through ice crystal formation, vascular stasis, and the release of cellular toxins. The delivery method determines how that destructive force is concentrated and distributed across tissue.

Depth Control vs. Surface Coverage in Cryogenic Solutions

Surface coverage and depth control are competing priorities in cryosurgery. Open spray prioritizes breadth. It allows clinicians to treat multiple adjacent lesions efficiently in a single session. The wide freeze pattern makes it well-suited for conditions spread across irregular areas of skin.

Closed probe prioritizes precision at depth. Direct contact concentrates freezing energy into a confined zone. That makes it better for thicker, nodular, or raised lesions requiring deeper tissue destruction.

Key tradeoffs to consider:

• Open spray covers more surface area but offers less control over how deep the freeze extends.
• Closed probe delivers greater accuracy at depth but treats a smaller tissue footprint.
• The halo diameter in open spray influences how deeply cold penetrates at the lesion periphery.
• Lubricating jelly or firm probe pressure can enhance heat transfer during closed-probe application.

Understanding this tradeoff guides clinicians toward the approach that matches the clinical goal for each patient.

Clinical Scenarios for Open Spray

Open spray is the most widely used cryosurgical technique. It performs best with:

• Actinic keratoses, seborrheic keratoses, and lentigos
• Flat warts, plane warts, and condylomata
• Superficial basal cell carcinoma and Bowen's disease
• Lesions on curved or irregular surfaces such as the scalp, ears, or extremities

The spray method applies an even flow of liquid nitrogen across uneven terrain. Clinicians can treat multiple sites in a single visit. That efficiency is valuable in busy dermatology or primary care practices.

Timed spot freezes typically range from 3 to 20 seconds, depending on lesion type and thickness. Pulsing the spray in short bursts prevents overexpansion of the treatment zone and reduces collateral tissue damage. Nozzle selection also matters: smaller apertures concentrate the freeze for isolated lesions, while larger openings allow broader coverage for more diffuse conditions.

Closed Probe: Precision for Sensitive Areas

Closed probe cryosurgery is the preferred method when targeted, controlled freezing is essential. Clinical scenarios that favor the probe include:

• Lesions near sensitive anatomy such as the eyelid margin, nail matrix, or peripheral nerves
• Raised, nodular, or well-circumscribed growths requiring deeper penetration
• Cases where epidermis preservation is a treatment goal
• Situations where minimizing hypopigmentation or scarring is a priority

Open spray near sensitive structures carries a higher risk of freeze injury to surrounding healthy tissue. The probe limits the freeze footprint. That targeted action preserves tissue integrity where precision is non-negotiable.

Advanced cryoprobes with integrated thermometers allow real-time temperature monitoring throughout the procedure. This is particularly valuable for malignant lesions, which require a target temperature of -50°C across two freeze-thaw cycles. Accurate endpoints reduce the risk of over-freezing or under-treatment. Research also confirms that intralesional closed-probe cryosurgery outperforms spray for keloid treatment due to greater internal freezing area and deeper dermal penetration.

An open cone shield positioned approximately 1 to 1.5 cm above the lesion can help confine nitrogen spray near delicate structures. However, for the tightest anatomical control, the closed probe remains the preferred option.

Find the Right Tool With Brymill

At Brymill Cryogenic Systems, we understand that no single technique fits every clinical situation. That is why having the right cryogenic equipment for both approaches matters.

Our open spray products feature interchangeable nozzle tips suited for lesions ranging from small isolated spots to larger treatment fields. You can tailor surface coverage to match any lesion presentation. For targeted, contact-based freezing, our closed probe options deliver the controlled application needed for sensitive or anatomically complex sites.

Both product lines carry the legacy of the original Cry-Ac device, the first handheld cryosurgical unit ever created. Brymill has set the industry standard for handheld liquid nitrogen cryosurgical devices for over 50 years. Contact us today to find the right fit for your practice.

Achieving consistent clinical results in cryosurgery depends on more than having liquid nitrogen available. The geometry of the spray, including aperture size, spray angle, and dispersion pattern, plays a fundamental role in treatment accuracy. These variables determine how effectively the spray destroys a lesion while protecting nearby tissue. Understanding spray geometry equips clinicians with the insight to standardize their technique and produce more predictable, reproducible outcomes.

The Role of Aperture Size in Targeting Lesions for Cryosurgery

The practitioner uses aperture size as one of the most direct controls over the spray zone. Manufacturers typically size nozzles from A through F, with F representing the smallest opening. Practitioners most widely use sizes B and C to treat both benign and malignant lesions. A smaller aperture delivers a concentrated stream of cryogen to a clearly defined area. This level of focus matters most when treating small or well-demarcated lesions in sensitive locations.

Larger apertures spread the cryogen across a broader area. While this suits wider lesions, it requires more careful monitoring to avoid damaging surrounding healthy skin. Single-hole nozzles constrain the spray zone, making them less suitable for lesions with a diameter greater than 15 mm. Multi-hole nozzle configurations distribute cryogen more evenly over expanded areas without compromising effective freeze depth.

Selecting the right aperture is a foundational step in every cryosurgery session. It defines the boundaries of the freeze zone before the trigger is engaged, setting the stage for the rest of the treatment.

How Spray Angle Affects Cryosurgery Accuracy

The angle at which liquid nitrogen meets the skin is just as important as the aperture selected. A perpendicular 90-degree angle at approximately 1 cm from the skin produces the most even, predictable freeze pattern. This standardized position ensures cryogen reaches the entire target zone in a controlled, reliable way.

Tilting the spray unit makes the cone of liquid nitrogen oblique rather than symmetrical. The side of the lesion closest to the nozzle receives more intense freezing. The opposing edge receives less, which can result in incomplete treatment and variable tissue destruction. Maintaining a steady, perpendicular angle throughout each freeze cycle is essential for achieving uniform results.

Distance from the skin also influences freeze intensity. Since air conducts cold poorly, any increase in standoff reduces the temperature reached at the skin. Even small deviations in position can alter the depth and diameter of the resulting ice ball. Holding a reliable distance throughout the procedure preserves the intended freeze dimensions.

Matching Spray Dispersion to Lesion Morphology

Lesion shape, size, and location all inform which spray pattern is most appropriate. A fixed technique does not account for the wide variety of presentations encountered in clinical practice. Each lesion warrants its own attentive assessment before the procedure begins.

Common dispersion techniques include:

• Spot freeze: A stationary spray aimed directly at the lesion center. This is best suited to small, well-defined targets and is the most widely used approach in everyday practice.
• Paintbrush method: The nozzle moves in a sweeping, up-and-down motion across the lesion. This is effective for wider or irregularly shaped lesions that require thorough, complete coverage.
• Spiral method: The spray starts at the lesion center and moves outward in progressively expanding circles. This supports systematic application for broader or rounder presentations.

For lesions on curved or anatomically challenging sites, open-spray techniques offer added flexibility. Cone shields help confine the freeze zone when borders are difficult to visualize. Cryocones, available in multiple sizes, can be shaped to match irregular contours. Each of these tools supports a more deliberate approach to cryogen administration and helps reduce the likelihood of missing intended treatment margins.

Impact on Margin Control and Cosmetic Outcomes

Margin control is among the most clinically meaningful aspects of cryosurgical technique. Recommended margins vary based on lesion type:

• Benign lesions: 1 to 2 mm beyond the visible border
• Premalignant lesions: 2 to 3 mm
• Malignant lesions: 4 to 5 mm of clinically normal skin to ensure adequate freeze depth

An overly broad or uneven spray can push the freeze zone well past these guidelines. When healthy skin is inadvertently included in the freeze area, the risk of scarring, pigmentation changes, and extended healing time increases. Considered spray geometry helps practitioners stay within appropriate margins for each individual case.

Cosmetic results are closely tied to how well the freeze zone is contained during treatment. This is especially relevant for procedures on the face, neck, and hands. A precise spray pattern reduces collateral damage to surrounding tissue and supports a cleaner, faster recovery. Patients treated in visible areas are often attentive to the final appearance, which makes accurate technique all the more valuable.

Delivering Precision With the Right Cryogenic Equipment

Your patients deserve treatments performed with accuracy at every step. The right cryogenic equipment makes that achievable in daily clinical practice.

Brymill Cryogenic Systems has been designing and manufacturing handheld liquid nitrogen devices since 1966. Our Cry-Ac® and Cry-Ac®-3 units come with a range of interchangeable spray tips, each offering a distinct aperture size to match different treatment requirements. Whether treating a small actinic keratosis or a broader lesion with irregular edges, these instruments provide the level of control that dependable cryosurgery demands. Dermatologists, family physicians, nurse practitioners, and other clinicians have relied on Brymill's devices for strategic, repeatable results.

Ready to bring greater precision to your practice? Send us a message today to explore Brymill's full line of cryogenic equipment and find the right solution for your clinical needs.

Clinical accuracy in cryosurgery is not just about technique. It is also about the tools a provider holds. Cryogenic equipment that lacks thoughtful engineering can lead to inconsistent freeze depths, unintended tissue damage, and missed targets. Understanding how device construction shapes clinical outcomes helps practitioners make more informed decisions about the instruments they trust.

Trigger Control and the Precision It Enables

The trigger is the clinician's primary interface with a cryosurgical unit. Its build directly shapes how accurately liquid nitrogen reaches the target site. A slender, fingertip-style trigger allows refined control that a wider or stiffer mechanism cannot match. It also reduces the chance of accidental spray onto surrounding healthy tissue.

Trigger responsiveness matters throughout the full length of a procedure. A well-built trigger activates smoothly and stops delivery the moment it is released. This allows practitioners to work in short, deliberate intervals. Short bursts are often essential when addressing small or irregularly shaped lesions.

Key features that contribute to trigger precision include:

• A fingertip-style mechanism that accommodates right- and left-handed users.
• Smooth activation with no delay between press and spray output.
• Immediate cutoff upon release to prevent oversaturation of the treatment area.
• Compatibility with interchangeable probe and spray tip sizes for different lesion types.

Pressure Regulation and Consistent Output in Cryogenic Equipment

Steady spray output depends on stable internal pressure throughout each procedure. If pressure shifts mid-treatment, the freeze pattern becomes unpredictable. That variability can result in incomplete results or unnecessary exposure to surrounding tissue. A well-regulated unit eliminates that uncertainty.

A streamlined relief valve is one of the most critical components in a handheld cryosurgical unit. It maintains constant operating pressure across the full procedure cycle. This ensures each application delivers a reliable output. The clinician can then achieve a uniform freeze pattern, patient after patient.

The depth and diameter of the freeze zone are directly influenced by how consistently the spray is delivered. A pressure drop, even a brief one, can create an uneven ice ball. Uneven ice ball formation increases the risk of undertreated tissue and unpredictable healing outcomes. Pressure fluctuations that go unnoticed can still affect the quality of the freeze.

Repeatable results matter especially in high-volume clinical environments. Practitioners may see many patients in a single workday. A unit that holds stable pressure throughout the day is one fewer variable to manage.

How Internal Pressure Systems Affect Spray Reliability in Cryogenic Equipment

The internal pressure system of a cryosurgical unit governs more than output force. It determines how liquid nitrogen transitions to vapor and how that vapor moves through the spray tip. Any disruption in that process changes what the clinician experiences at the point of treatment. Even minor inconsistencies in vapor delivery can shift the spray pattern and reduce clinical precision.

Self-pressurizing systems use the natural vapor pressure of liquid nitrogen to build and sustain the operating pressure needed. This structure removes the need for external gas lines or added pressure sources. The unit becomes untethered and fully self-contained. That portability supports flexible use across a wide range of exam room settings.

Pressure management also plays a direct role in safety. A patented autovent mechanism allows pressure to gradually vent as the cap is unscrewed. This prevents sudden release during refilling or maintenance. Predictable pressure handling protects both the clinician and the patient at all stages of use.

Ergonomics and Fatigue Reduction in Clinical Settings

Cryosurgery is often performed in fast-paced environments with heavy patient volumes. Repeated use over a full workday places real physical demands on a practitioner's hand and wrist. Fatigue reduces steadiness. Reduced steadiness affects where the spray lands.

Ergonomic construction reduces the physical toll on the clinician. Key considerations include:

• Insulated grips or collars that shield the hand from cold transfer and limit condensation.
• A balanced unit weight that allows steady holding without strain over extended sessions
• A handle shape that aligns naturally with the hand's resting position.
• Lightweight overall construction that does not fatigue the wrist during prolonged use.

A well-balanced unit lets the provider focus fully on the lesion, not on managing the instrument. When a device feels like a natural extension of the hand, the procedure becomes more attentive and precise. That comfort is not a secondary concern. It is a direct clinical advantage.

Even small hand movements during spray delivery can alter where the freeze zone forms. A device that remains stable in the clinician's hand reduces those micro-shifts. The result is a procedure that lands exactly where intended.

Precision Tools for Every Clinical Setting

At Brymill Cryogenic Systems, every device is engineered around the clinician's needs. Our Cry-Ac® and Cry-Ac®-3 units feature a fingertip trigger for maximum control. A streamlined relief valve maintains constant operating pressure throughout each session. A patented safety autovent ensures secure handling during refilling and maintenance.

These units are available in 300 ml and 500 ml capacities. That gives practitioners the flexibility to match the right tool to their clinical volume. Whether treating warts, actinic keratoses, or other benign lesions, the right cryosurgical device makes a measurable difference.

If you are ready to elevate the precision of your cryosurgical practice, we are here to help. Reach out to us today to find the Brymill device that fits your clinical environment.

Applicators, Apertures, and Probes for Targeted Treatment

Safety and Handling Supplies That Protect Staff and Patients

Valves, Pumps, and Flow Control Components

Storage and Infrastructure Accessories That Support Reliability

Building a Complete System Through Accessory Selection

Equipping Your Practice for Confident Cryosurgical Care

Preparing Your Practice for Setup

Optimizing Clinical Workflow

Training and Safety Integration for Dermatology Teams

Evaluating Return on Investment

​Advancing Cryosurgery Through Strategic Equipment Integration

Why Cryogenic Equipment Specifications Matter in Clinical Practice

Capacity and Its Impact on Clinical Workflow

Understanding Pressure Control and Delivery Consistency

Performance Characteristics That Influence Treatment Precision

Evaluating Specifications for Informed Purchasing Decisions

Choosing Cryogenic Equipment With Confidence

Understanding the Importance of Preventive Maintenance

Establishing Routine Inspection and Care Procedures

• Verifying proper assembly
• Confirming secure fittings
• Ensuring that moving parts operate smoothly

Identifying Common Cryogenic Equipment Issues

Troubleshooting Safely and Effectively

Extending Equipment Lifespan Through Proper Use and Storage

Supporting Reliable Cryogenic Equipment in Clinical Practice

Take the Next Step with Brymill’s Industry-Leading Solutions

Successful cryosurgery depends on more than clinical intent alone. It requires structured education, validated competencies, and clearly defined roles across the care team. The safe and effective use of cryogenic equipment begins with a thorough understanding of how training, credentialing, and internal protocols intersect in real-world practice. Providers who invest in these foundations reduce risk, improve outcomes, and strengthen trust with patients and regulatory bodies alike.

As cryosurgery becomes more widely adopted across dermatology, primary care, and specialty clinics, expectations around professional readiness continue to rise. Formal preparation is no longer optional. It is an operational and ethical responsibility that supports consistency, safety, and quality.

Core Educational Requirements for Cryogenic Equipment Providers

Clinical education forms the base of cryosurgical competency. Physicians, nurse practitioners, and physician assistants must first possess appropriate licensure within their scope of practice. From there, focused instruction on cryosurgical principles is essential. This includes:

Tissue response to freezing

Lesion selection

Freeze time variables, and

Post-treatment management

Didactic learning alone is insufficient. Practical exposure under supervision allows clinicians to translate theory into controlled execution. Case-based instruction helps reinforce decision-making while highlighting common pitfalls. Many practices incorporate internal workshops or continuing medical education modules to ensure knowledge remains current as guidelines evolve.

Ongoing learning should not stop after initial onboarding. Regular updates reinforce best practices while adapting to advances in device design or procedural standards. Clinics that prioritize structured education create a culture where competence is continuously refined rather than assumed.

Credentialing and Certification Pathways

Credentialing establishes formal recognition of a provider’s ability to perform cryosurgical procedures. While no single national certification governs all cryosurgery use, many institutions require documented training hours, supervised cases, and peer review before granting privileges.

Hospital-based systems often maintain credentialing committees that evaluate experience and procedural volume. Ambulatory practices may mirror this structure internally, using standardized checklists and performance assessments. These measures demonstrate due diligence while protecting patients and staff.

Certification programs offered through professional organizations can further validate expertise. Although not always mandatory, they strengthen professional standing and support compliance during audits. Clear documentation of credentialing decisions ensures accountability and transparency across the organization.

Staff Training Protocols and Role Definition in Using Cryogenic Equipment

Cryosurgery involves more than the clinician holding the device. Medical assistants, nurses, and support personnel play critical roles in preparation, patient education, and post-procedure care. Structured training protocols ensure that every team member understands their responsibilities.

Staff instruction should address safe handling of liquid nitrogen, room preparation, personal protective equipment use, and emergency response. Simulation-based learning can be particularly effective, allowing teams to practice scenarios without patient risk.

Defined roles reduce confusion during high-volume clinic days. When each participant understands their function, workflows remain efficient, and errors become less likely. Consistent reinforcement through periodic refreshers keeps standards aligned with evolving expectations.

Documentation, Compliance, and Quality Oversight

Proper documentation supports both clinical quality and regulatory compliance. Training records, competency assessments, and credentialing files should be maintained in an organized manner. These materials provide evidence of preparedness during inspections or malpractice reviews.

Quality oversight adds another layer of assurance. Regular chart audits, outcome tracking, and peer discussions help identify trends that may require corrective action. This feedback loop encourages continuous improvement while reinforcing accountability.

Risk management benefits directly from these efforts. When education, authorization, and oversight align, adverse events become less frequent and easier to address. A proactive approach protects patients while strengthening institutional resilience.

Supporting Long-Term Readiness With Reliable Systems

As practices refine their training and credentialing frameworks, equipment selection becomes part of the preparedness conversation. Devices that offer consistent performance and clear operating guidance support safer execution during both routine and complex cases.

Brymill Cryogenic Systems specializes in hand-held liquid nitrogen delivery for medical use and offers a range of educational and training resources. Our devices, like the Cry-Ac® & Cry-Ac®-3, are designed to integrate smoothly into high-volume clinical settings, supporting efficiency without introducing unnecessary complexity.

Medical practices today are expected to operate with environmental responsibility in mind. This expectation extends beyond recycling programs or energy-efficient lighting. It reaches into clinical workflows, supply chains, and the tools practitioners choose. In cryosurgery, where precise outcomes depend on reliable technique and high-quality equipment, sustainability is not a compromise; it is a natural extension of good practice. Liquid nitrogen remains the most widely utilized cryogen for in-office dermatological procedures. Understanding how to use it efficiently, and how to make smarter equipment decisions, gives clinicians a clear path toward reduced waste and resource management.

Efficient Use of Liquid Nitrogen in Clinical Settings

Liquid nitrogen is highly effective, but it must be applied with intention. Inefficient dispensing leads to unnecessary evaporation and wasted cryogen. Even modest workflow adjustments can reduce consumption over time.

Modern delivery systems have achieved efficiency rates of up to 95% when transferring liquid nitrogen from storage to application points. Equipment placement is also important. Storing devices close to the nitrogen source reduces the length of pipework needed and minimizes cooling loss. Equipment that requires refilling every one to two days consumes far more cryogen than models designed to retain nitrogen for four to seven days between fills.

Adopting intentional practices for cryogen management makes a measurable difference:

Store cryogenic devices in stable, cool environments to limit evaporation between treatment sessions.

Prioritize equipment with well-insulated reservoirs that retain nitrogen more effectively.

Train clinical staff on proper dispensing to avoid over-application during procedures.

Schedule procedures in batches when possible to maximize efficiency from each fill cycle.

The Lifecycle Advantage of Durable Equipment

Equipment durability is one of the most underappreciated sustainability factors in a clinical setting. A device built to last years reduces the frequency of replacements. Fewer replacements translate to less manufacturing waste, less product packaging, and fewer carbon emissions tied to transportation across the supply chain.

More sustainable equipment tends to require less energy and liquid nitrogen over time. It is also more cost-effective in the long run. When a practice invests in a well-constructed cryosurgical device, it breaks the cycle of constant procurement. Fewer purchases mean fewer resources consumed at every stage, from initial production through end-of-life disposal.

Durable tools also deliver more consistent clinical performance. Consistent performance supports precision and reduces the likelihood of repeat treatments caused by equipment variability. A reliable device serves both the patient and the environment well.

Reducing Single-Use and Disposable Dependency

Disposable components became standard in many cryosurgical workflows for legitimate reasons. Concerns about cross-contamination, particularly with communicable diseases, made single-use items an appealing solution. However, heavy reliance on disposables generates considerable medical waste. That footprint accumulates quickly across a busy practice.

The solution is not to abandon safety standards. It is to be more considered about which components truly require single-use. Many well-designed cryosurgical systems include reusable components that can be properly sterilized between procedures. Practices can audit current workflows to identify where responsible reductions are possible without compromising patient safety.

Reusable attachments, when paired with validated sterilization protocols, maintain rigorous safety standards. This approach does not diminish care quality. It simply calls for a more attentive strategy in procurement and waste management.

The Environmental Profile of Liquid Nitrogen

Liquid nitrogen has a notably favorable environmental profile compared to many alternative cryogens. After use, it leaves no hazardous waste or persistent environmental pollutants. Synthetic refrigerants, in contrast, often require specialized disposal procedures to prevent contamination.

Nitrogen is also produced through air separation, which can be localized to reduce transportation distances. This stands in contrast to chemical refrigerants that may require long-distance shipping with a significantly larger carbon footprint.

These characteristics make liquid nitrogen not just the clinically superior choice for cryosurgery. It is also one of the more environmentally responsible cryogens available to practitioners today.

Partnering with a Manufacturer Built for Longevity

At Brymill Cryogenic Systems, durability has been a foundational design principle since 1966. Our devices, the Cry-Ac® and Cry-Ac®-3, are built to serve practices for years. This directly supports your sustainability goals. Fewer replacements, consistent precision, and efficient liquid nitrogen delivery all reduce waste over time.

Choosing equipment designed with longevity at its core is a decision that benefits your patients, your practice, and the planet. If you are ready to take a more sustainable approach to your cryosurgical workflow, we would love to help.

Sun exposure accumulates silently over time, often revealing damage years later in the form of rough, scaly patches. These lesions deserve attention because they represent an early step in the skin cancer pathway. Actinic keratosis removal plays a critical role in preventive dermatology, addressing visible signs of ultraviolet injury before malignant transformation occurs. Cryosurgery remains one of the most widely used interventions due to its precision, efficiency, and suitability for outpatient care.

Clinicians who understand when and how to apply cryosurgical protocols can interrupt disease progression while preserving healthy tissue. Evidence-based management supports both patient safety and long-term skin health.

​Understanding Actinic Keratoses as Pre-Cancerous Lesions

Actinic keratoses develop from cumulative ultraviolet radiation exposure, most commonly on the face, scalp, ears, forearms, and hands. These lesions represent atypical keratinocyte proliferation and carry a measurable risk of evolving into squamous cell carcinoma. Early identification is therefore a cornerstone of prevention.

Visual inspection combined with tactile assessment helps differentiate these patches from benign sun damage. Texture changes, erythema, and persistent roughness often signal concern. Biopsy may be appropriate when clinical features appear ambiguous or when a lesion resists standard intervention.

Timely treatment aligns with population-level cancer reduction strategies. Addressing lesions early reduces the burden of invasive disease and limits the need for more aggressive therapies later.

Why Cryosurgery Is a Preferred Modality for Actinic Keratosis Removal

Cryosurgery eliminates abnormal cells through rapid freezing, resulting in intracellular ice formation and vascular compromise. This mechanism selectively destroys dysplastic tissue while sparing surrounding structures when applied correctly.

Compared with topical agents or curettage, freezing offers immediate lesion destruction and minimal reliance on patient adherence. Treatment sessions are brief, making this option well-suited for busy clinical environments and elderly populations.

For isolated lesions, cryosurgery often functions as a definitive solution. In field cancerization cases, freezing may complement topical therapies to address both visible and subclinical damage. The versatility of this approach supports personalized care planning.

Actinic Keratosis Removal Protocols and Safety Considerations

Effective cryosurgical care depends on technique selection, freeze duration, and lesion depth assessment. Short freeze cycles may suffice for superficial lesions, while thicker plaques require longer exposure or repeat applications. Allowing complete thaw between cycles enhances cellular destruction.

Patient guidance remains essential. Transient blistering, erythema, and crusting should be discussed beforehand to reduce anxiety and improve satisfaction. Informed individuals are more likely to comply with post-procedure guidance.

Special consideration is warranted for individuals with darker skin tones due to pigment alteration risk. Conservative application and careful follow-up help mitigate unwanted cosmetic effects while maintaining therapeutic benefit.

Prevention Strategies Beyond Lesion Destruction

While procedural care addresses existing lesions, prevention focuses on reducing future risk. Sun protection education forms the foundation of long-term management. Broad-spectrum sunscreen use, protective clothing, and behavioral modification reduce ultraviolet exposure.

Regular skin examinations support early detection, particularly for individuals with a history of actinic keratoses. Clinicians should encourage self-monitoring alongside scheduled professional assessments.

Integrating procedural intervention with lifestyle guidance reinforces a comprehensive approach. Preventive education enhances outcomes beyond the immediate treatment area and supports sustained skin health.

Advancing Preventive Care Through Trusted Cryosurgical Solutions

Precision equipment supports predictable outcomes in cryosurgical practice. Devices that allow controlled liquid nitrogen delivery help clinicians tailor treatment to lesion characteristics. Consistency across sessions improves reliability and supports standardized care pathways.

Brymill Cryogenic Systems works with healthcare providers to support safe, effective cryosurgical care through purpose-built equipment and clinical expertise. We provide medical-grade cryosurgical equipment and accessories for dermatologic applications. Our solutions enable clinicians to deliver accurate freezing while maintaining ergonomic control during procedures.

Ready to strengthen your approach to lesion management and prevention? Contact us to learn more about professional solutions designed for modern dermatology practices.

Scar management remains one of the more nuanced challenges in dermatologic care, particularly when differentiating keloid vs hypertrophic scar behavior and response to intervention. Although both arise from abnormal wound healing, their biological patterns, recurrence risks, and treatment outcomes vary significantly. Cryosurgery has emerged as a valuable modality for addressing each condition, especially when applied with advanced techniques and adjunctive therapies.

Understanding how freezing mechanisms interact with scar tissue allows clinicians to tailor protocols with greater precision. When used strategically, cryosurgery offers meaningful improvement in texture, volume, and symptoms while supporting patient satisfaction and long-term control.

Distinguishing Keloid vs Hypertrophic Scar Biology in Cryosurgical Planning

Effective intervention begins with accurate diagnosis. Hypertrophic scars remain confined to the original wound margin and often stabilize or regress over time. Keloids extend beyond the initial injury and demonstrate aggressive fibroblast activity with a high likelihood of recurrence.

Cryosurgery affects these lesions through vascular stasis, cellular necrosis, and collagen disruption. Hypertrophic formations typically respond well to controlled freeze cycles due to their limited depth and predictable growth pattern. Keloids require more intensive strategies because of their robust blood supply and tendency to re-expand.

Treatment planning must account for lesion thickness, anatomic location, and patient skin type. Adjusting freeze duration and application method helps balance efficacy with cosmetic preservation, particularly in cosmetically sensitive regions.

Advanced Cryosurgical Techniques for Hypertrophic Scar Reduction

For hypertrophic scars, surface-based cryosurgical application often yields favorable outcomes. Shorter freeze times combined with precise targeting reduce excess collagen while minimizing surrounding tissue impact. This approach supports flattening, softening, and symptomatic relief, such as reduced pruritus or tenderness.

In many cases, cryosurgery is performed as a standalone intervention. However, combining freezing with intralesional corticosteroids can enhance response, particularly for thicker lesions. The cryogenic effect increases tissue permeability, allowing injected agents to disperse more effectively.

Spacing sessions appropriately remains critical. Adequate healing intervals promote remodeling while lowering pigment alteration risk. When applied consistently, this method aligns well with patient expectations for gradual yet visible improvement.

Cryosurgery and Combination Therapy for Keloid Scar Removal

Keloids often demand a multi-modal approach. Cryosurgery alone can reduce bulk, but combination therapy improves durability. Intralesional cryotherapy or contact freezing followed by steroid injection is commonly employed to suppress fibroblast activity.

The role of keloid scar removal through cryosurgical means centers on debulking and symptom control rather than complete eradication. Patients benefit from reduced size, decreased discomfort, and improved appearance, even if maintenance therapy remains necessary.

Adjunctive treatments may include silicone sheeting, pressure therapy, or postoperative injections to reinforce results. Cryosurgery enhances the effectiveness of these measures by disrupting the dense extracellular matrix that sustains keloid growth.

Managing Risk, Pigment Changes, and Patient Expectations in Keloid vs Hypertrophic Scar Treatment

Cryosurgery carries specific considerations, particularly in darker skin tones where hypopigmentation risk is higher. Careful technique selection and conservative freeze parameters help mitigate unwanted outcomes. Educating patients before intervention supports informed consent and realistic expectations.

Clear communication about recurrence probability is essential, especially with keloids. While cryosurgery improves control, no single modality guarantees permanence. Emphasizing a management-oriented mindset fosters trust and long-term adherence.

Post-procedure care also influences results. Monitoring healing progress, addressing inflammation early, and scheduling follow-ups contribute to both safety and satisfaction.

Equipment Considerations for Advanced Cryosurgical Scar Management

Precision matters when treating complex scar tissue. Devices that allow controlled liquid nitrogen delivery support consistency across treatment sessions. Hand-held systems with interchangeable applicators enable clinicians to adapt the technique based on lesion size and depth.

Brymill Cryogenic Systems has long supported medical cryosurgery through equipment designed specifically for dermatologic applications. Our cryosurgery accessories line allows providers to perform nuanced scar interventions with dependable performance and clinician-focused ergonomics.

For practices seeking to refine their approach to cryosurgical scar treatment, talk to Brymill Cryogenic Systems to explore solutions that align with advanced clinical protocols and patient care goals.
